How to Build a DIY Barstool
Introduction
This barstool is a perfect way to practice your bridle joint skills. A bridle joint has the strength of a mortise and tenon joint. But unlike a mortise and tenon, all the joint cutting can be done on a table saw. No fussy handwork is needed. When glued together, this is a virtually indestructible stool. If you really want to beef it up, peg the joints with draw-bored dowels. Don’t want the back rest? Leave it off and make the front and back assemblies identical.Tools Required
Materials Required
- Hardwood lumber
- Wood glue
Cutting List
Overall dimensions: 31-1/2-in. H x 13-in. W x 14-in. D
| KEY | QTY. | PART | DIMENSION |

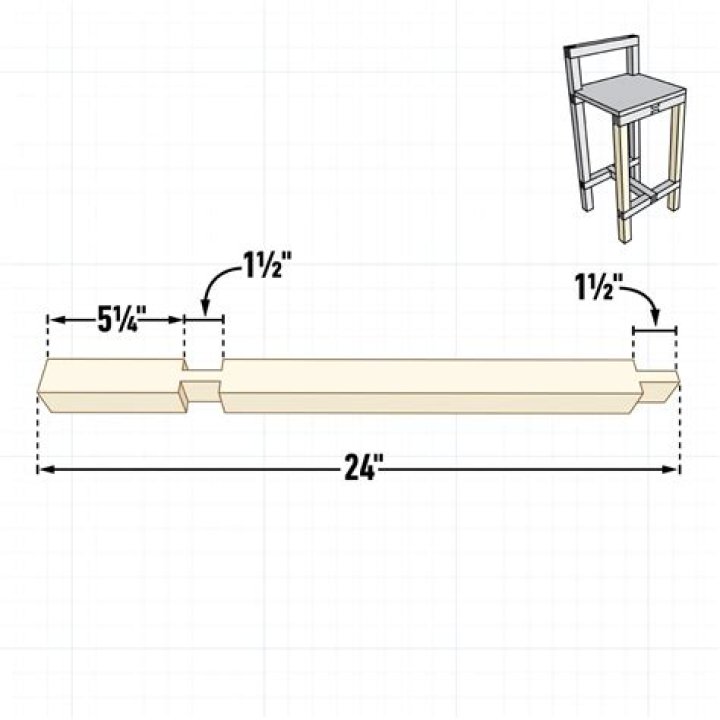

| A | 2 | Front leg | 1-1/2″ x 1-1/2″” x 24″ |
| B | 2 | Back Leg | 1-1/2″ x 1-1/2″” x 31-1/2″ |
| C | 5 | Long stretcher | 1-1/2″ x 1-1/2″” x 14″ |
| D | 2 | Short stretcher | 1-1/2″ x 1-1/2″” x 13″ |
| E | 1 | Seat | 3/4″ x 13″ x 14″ |
